FITCAMX Fuse Box Cable Hardwire kit, 4in1 ATO (Regular), Mini, Micro2, Low-profile mini
FITCAMX Fuse Box Cable Hardwire kit, 4in1 ATO (Regular), Mini, Micro2, Low-profile mini
FITCAMX Fuse Box Cable Hardwire kit, 4in1 ATO (Regular), Mini, Micro2, Low-profile mini

FITCAMX Fuse Box Cable Hardwire kit, 4in1 ATO (Regular), Mini, Micro2, Low-profile mini

Regular price$29.00
/
Shipping calculated at checkout.

  • In stock, ready to ship
  • Inventory on the way

Install Guide: Download Here

1. Only compatible with FITCAMX dash cam with 8 pin connector. Note that not all FITCAMX cameras have 8 pin connector, you can contact us for identification.

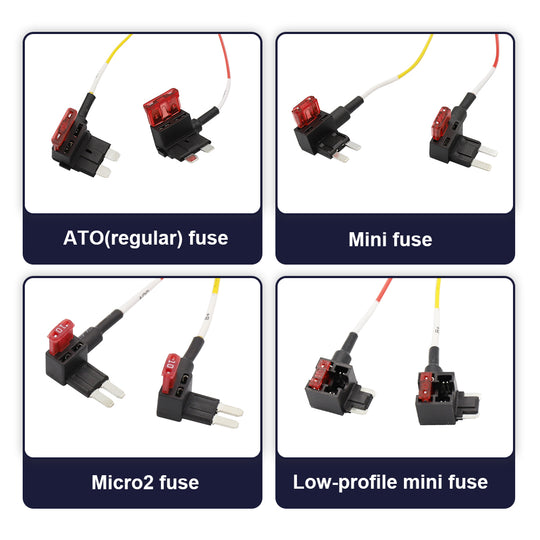

2. It comes with 4 pairs of fuses, including ATO (Regular) x2, Mini x2, Micro2 x2, and Low-profile mini x2. Please identify the fuse of your vehicle and choose the correct fuse. You just need to choose one of the pair to install the dash camera.

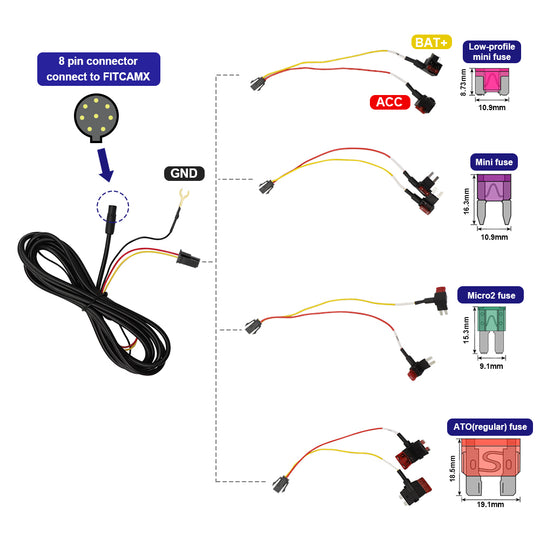

3. The red wire is ACC, which needs to be connected to a fuse that has power when the vehicle is powered on, but does not have power when the car is off. The yellow wire is connected to BAT+ 12v constant power which is a fuse that has constant 12v power when the vehicle is parked. Black wire is GND, that is connected to the ground and negative (usually fixed metal screw).

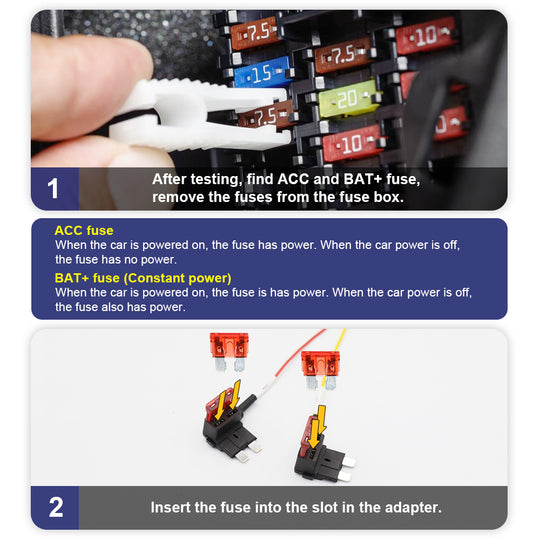

4. We don't have a special installation tutorial, It is recommended use a multimeter to check the fuse and find ACC and BAT+, or find a professional garage to install it.
